Mitsubishi MR-JE-100AS CNC Servo Drive 1kW High Precision AC Servo Amplifier for CNC Machinery

  • 1
  • 2
  • 3

Brand Name : Siemens

Model Number : MR-JE-100AS cnc

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Delivery Time : 2-3 days

Product Name : PLC Industrial Control

Part Number : MR-JE-100AS cnc

Shipment : DHL

Condition : New

Lead Time : 2-3 days

Warranty : 1 year

Keywords : MR-JE-100AS cnc

Contact Now

Siemens MR-JE-100AS cnc Overview

Mitsubishi MR-JE-100AS is a high-performance 1kW AC servo amplifier of the MELSERVO-JE series, specially optimized for CNC machinery feed axis control and precision industrial automation applications. It supports 1/3-phase AC 200-240V wide voltage input, matching Mitsubishi JE series 1kW servo motors (e.g., HG-KR103B, HG-SN102) to achieve micron-level positioning precision with 17-bit high-resolution encoder (131072 p/rev).

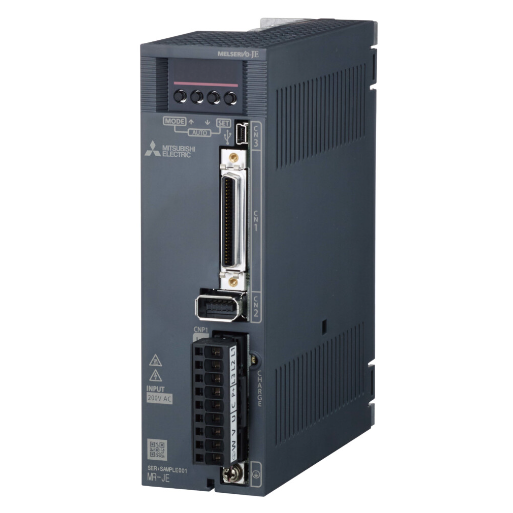

Figure 1 shows the front panel of MR-JE-100AS cnc.

Mitsubishi MR-JE-100AS CNC Servo Drive 1kW High Precision AC Servo Amplifier for CNC Machinery







Mitsubishi MR-JE-100AS CNC Servo Drive 1kW High Precision AC Servo Amplifier for CNC Machinery












Quick Specs.

Table 1 shows the Quick Specs.

Parameter Specification
Rated Output 1kW
Input Voltage 1/3-Phase AC 200-240V 50/60Hz
Rated Output Current 6.0A
Control Modes Position/Speed/Torque
Encoder Resolution 131072 p/rev (17-bit)
IP Rating IP20
Operating Temp 0~55℃ (Non-condensing)
Weight 1.5kg





Detailed Specification
Category Item Specification
Power Specification Rated Output Power 1kW

Main Circuit Input 1/3-Phase AC 200-240V, 50/60Hz; Allowable Fluctuation: 170-264V AC

Main Circuit Input Current 5.0A (Rated)

Rated Output Current 6.0A; Peak Output Current: 18.0A (3x Rated)

Interface Power Supply DC 24V±10%, 0.1A (CN1 Signal Loop)

Output Voltage 3-Phase AC 0~200V (Variable with Input)
Control Performance Control Method Sine-wave PWM Control / Current Control

Control Modes Position (Max 100kHz Pulse), Speed (±10V Analog), Torque (±10V Analog)

Speed Response Frequency 500Hz

Encoder Resolution 131072 pulses/rev (17-bit)

Communication USB, RS-422/RS-485; SSCNET III/H (0.444ms/0.888ms Cycle)
Mechanical Specs Dimensions (W×H×D) 70mm × 168mm × 185mm

Weight 1.5kg

Cooling Method Natural Cooling (No Fan)

Mounting Type Wall-mounted
Environmental Specs Operating Temperature 0~55℃ (Non-condensing)

Storage Temperature -20~65℃ (Non-condensing)

Operating/Storage Humidity ≤90% RH (Non-condensing)

Vibration Resistance 5.9m/s² (10~55Hz, X/Y/Z Axes)

Altitude ≤1000m above sea level

IP Rating IP20 (Finger-proof)
Protection Functions Electrical Protection Overcurrent, Overvoltage, Undervoltage, Overload (Electronic Thermal)

Mechanical Protection Motor Overheat, Encoder Error, Position Deviation Excess, Overspeed

Other Protection Instantaneous Power Failure, Regenerative Error
Core Functions Tuning Function One-touch Auto Tuning, Adaptive Filter, Robust Filter

Vibration Control Advanced Vibration Suppression Control II

Energy Saving Regenerative Energy Utilization via Large Capacitance Capacitor

Monitoring Drive Recorder, Machine Diagnosis, Power Monitoring
Mitsubishi MR-JE-100AS CNC Servo Drive 1kW High Precision AC Servo Amplifier for CNC Machinery
Mitsubishi MR-JE-100AS CNC Servo Drive 1kW High Precision AC Servo Amplifier for CNC Machinery
